Machine type: CNC Lathe
Manufacturer: Universal CNC BOEHRINGER NG
Model: NG200
Year of construction:: 2002
Condition: Good (used)

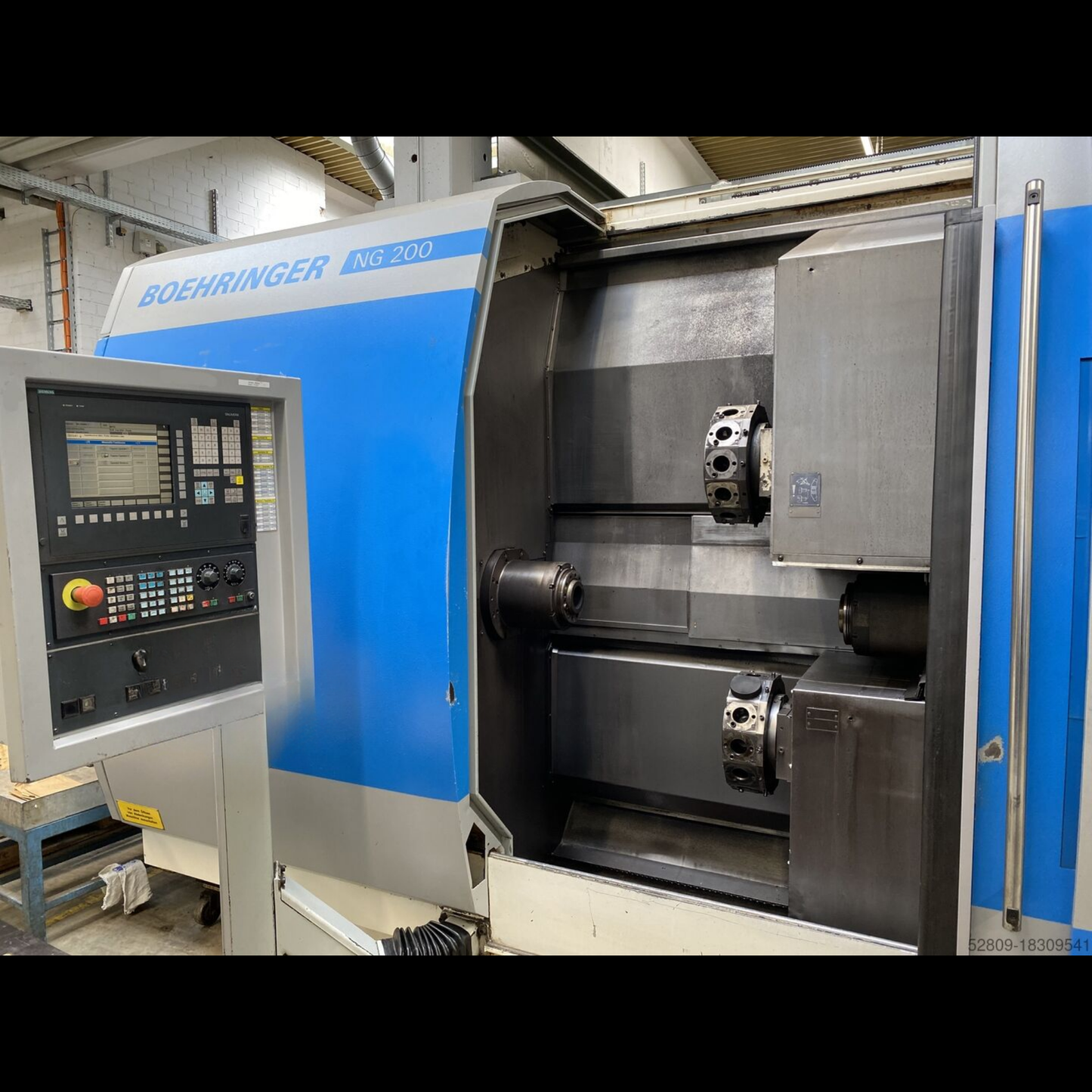

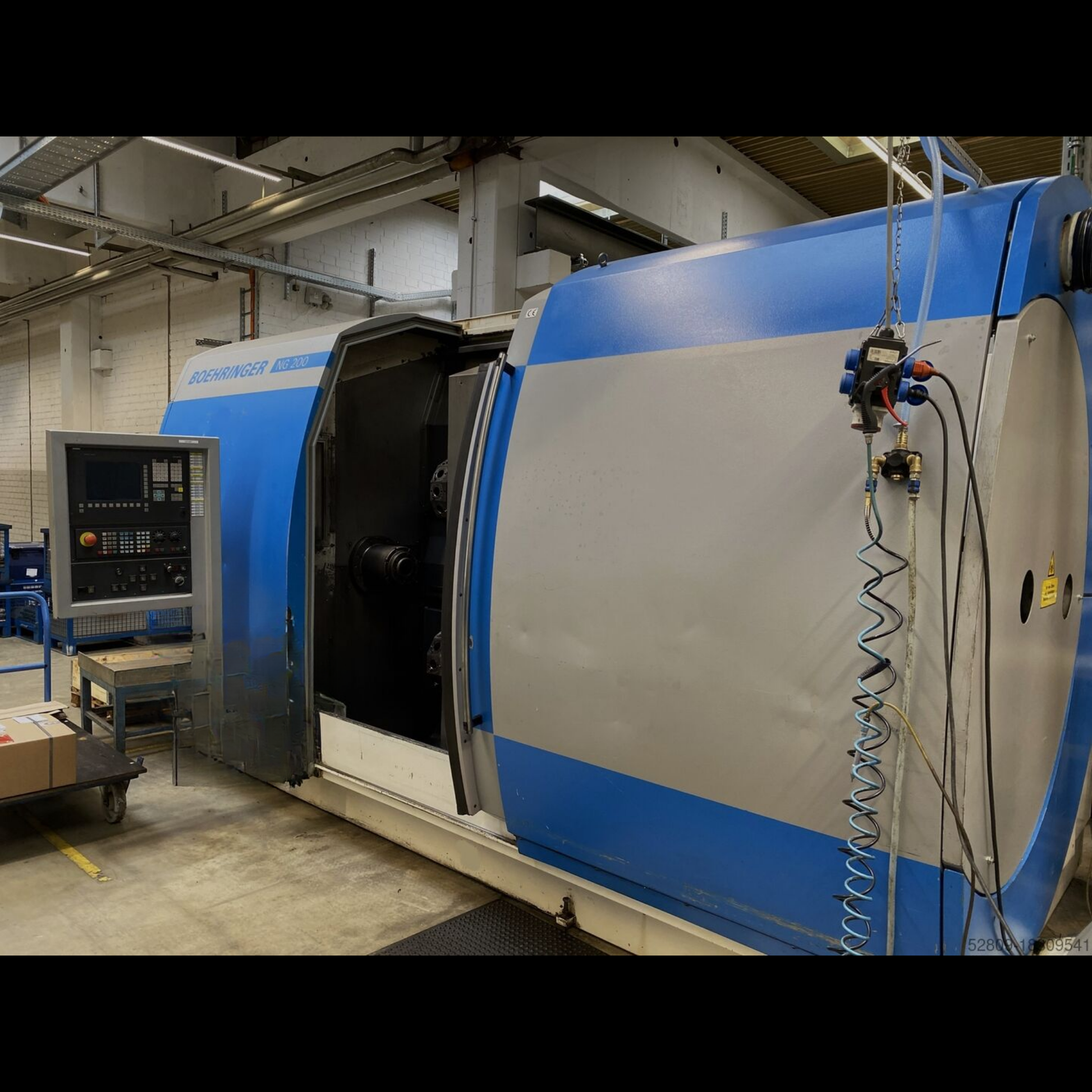

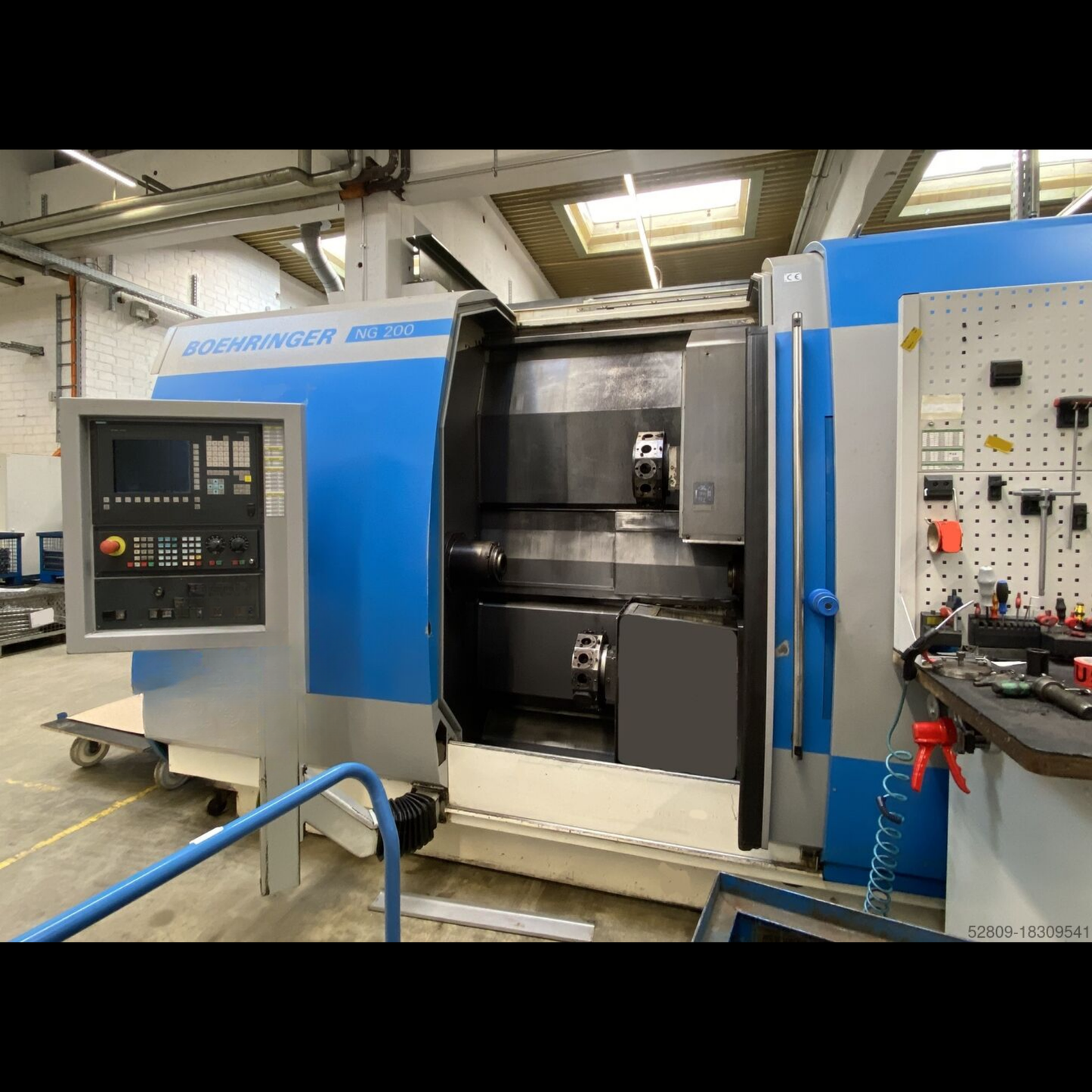

Universal CNC lathe BOEHRINGER NG 200
Manufacturer: BOEHRINGER
Type: NG200 CNC double
Control unit: Siemens 840D
Year of construction: 10/2001
Turning diameter: 290 mm
Turning length: 850 mm
Control: SIEMENS 840 D
Turning diameter over bed: 600 mm

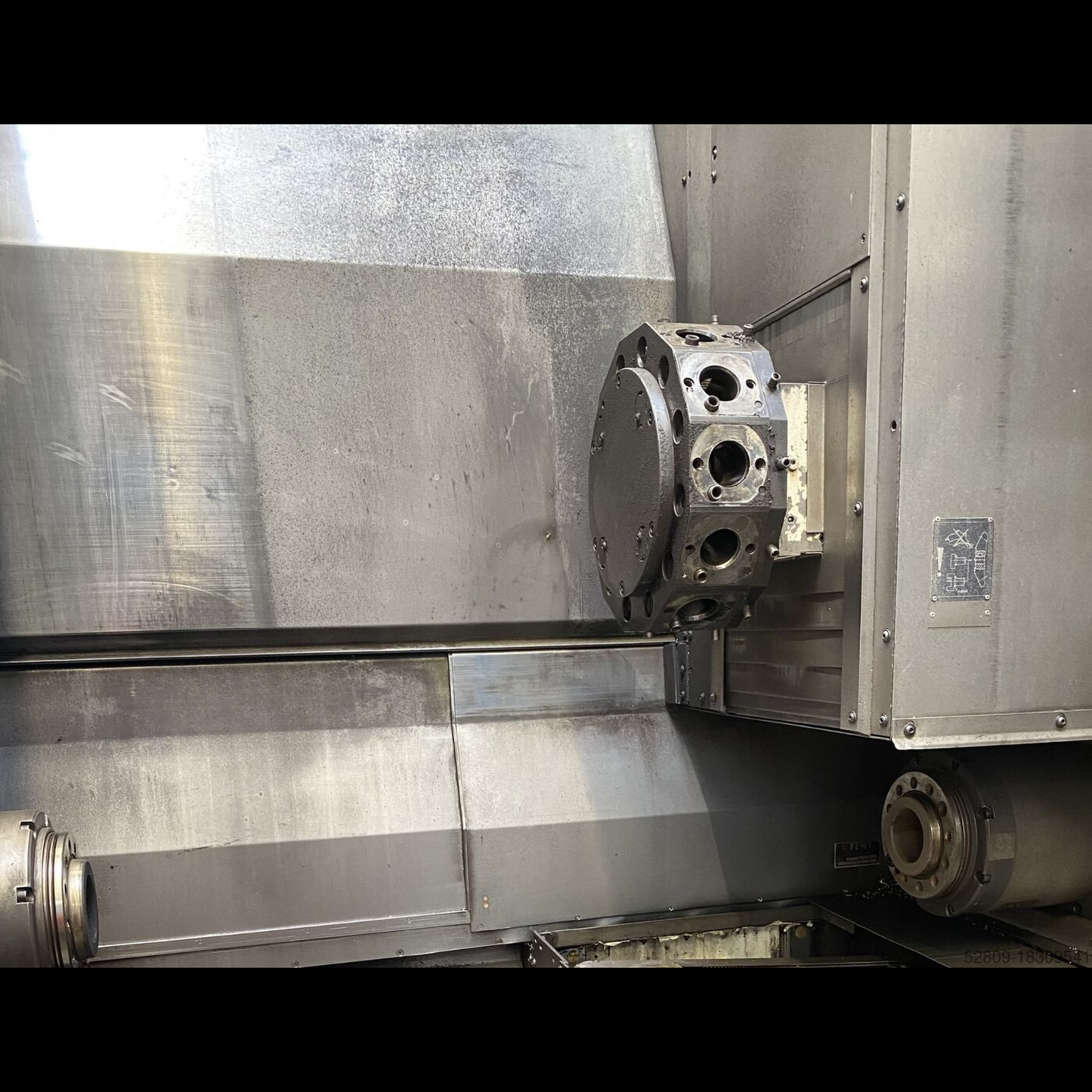

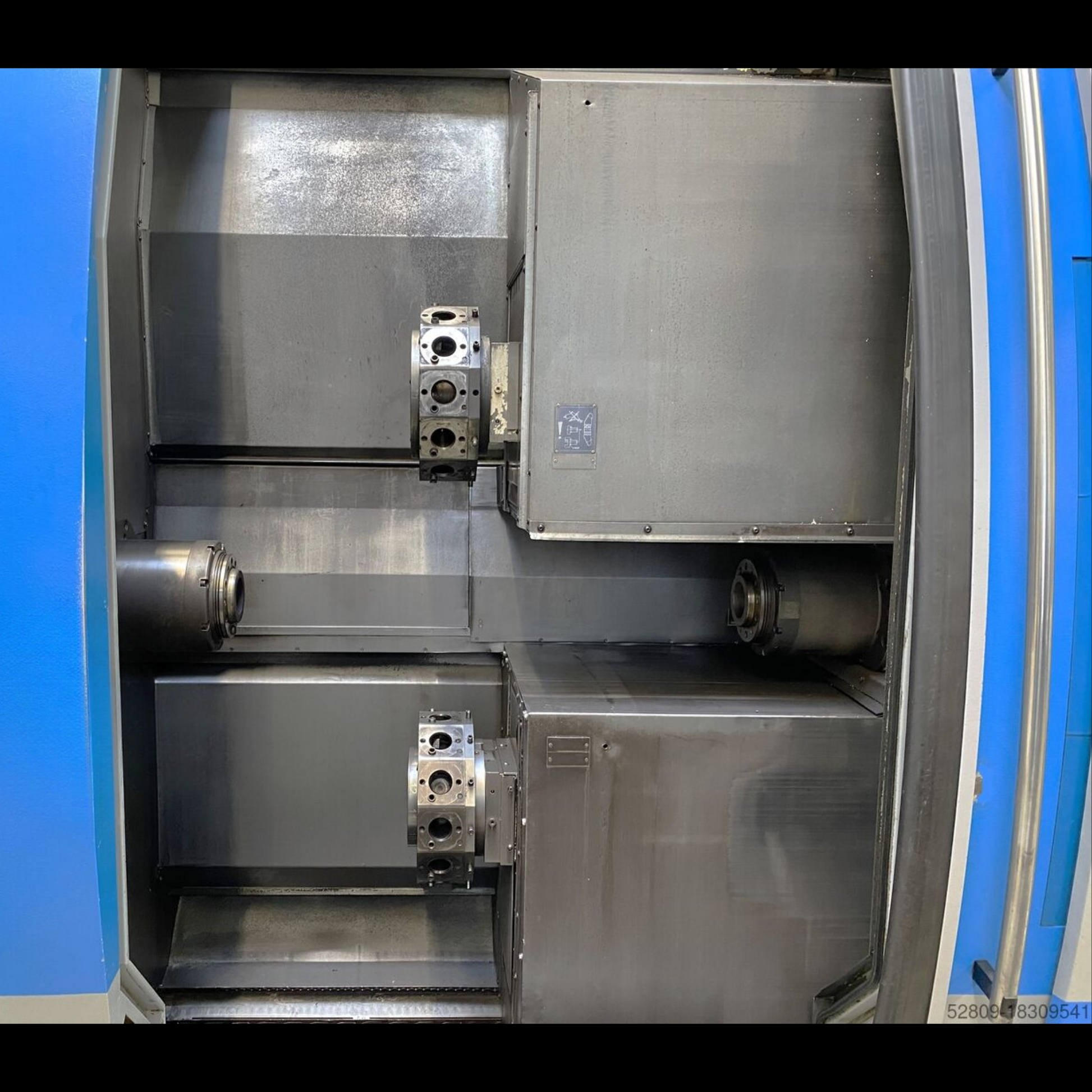

Turret 1
Turret 2

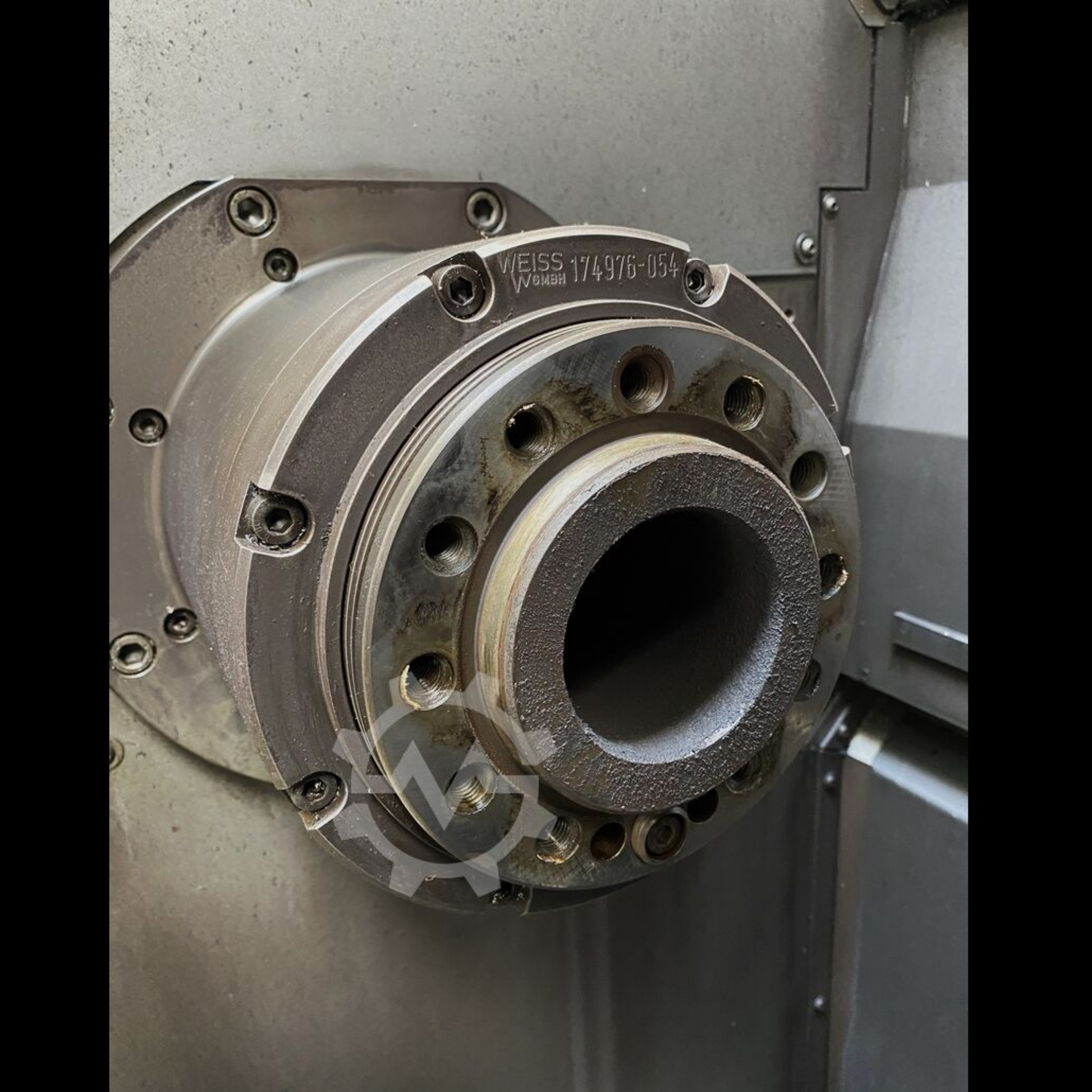

Counter spindle
Counter spindle stock
Tailstock
C-axis
Driven tools
Automatic machine doors - newly retrofitted
Z-axis resolution: 40nm (2nm interpolated)
Travel path in Z: 740mm
Rapid traverse speed in Z: 25 m/min
Centering tip SK 30
X-axis resolution: 125nm (8nm interpolated)
Travel path in Z: 220mm
Rapid traverse speed in Z: 25 m/min
Distance between main and counter spindle: 1034mm
Drive power: 30-72 kW
Torque: 662 Nm
Max. speed range: 4500 rpm
Spindle head: size 6/8 DIN 55026
Spindle diameter in front bearing: 120 mm
Chuck diameter: 200-315mm
Spindle bore: 103 mm
Tailstock quill holder MK: MK 4
Machine weight approx. [weight]: 11 t
Space required approx. [needed space]: 6.0x2.3x2.5 m
Complete documentation is available.
Inspection under power can be arranged at short notice.
We are happy to answer any further questions you may have. Price, ex warehouse here plus VAT.
Condition: good - ready for demonstration
Delivery: ex warehouse - as seen
Payment: net - after receipt of invoice
Nebin R Ejvr Eqgs Dujwi
Subject to prior sale, errors excepted.
